Frontline DT Drop Thru Anchor

SKU:DT602

$176.99

The Frontline Drop Thru Anchoring devices are a quick go to solution when presented with an overhead opening on concrete floors, steel girders, steel grates, and other applications. No tools required or extensive labor to install the Drop Thru anchor once the adequate application for the anchor is presented at the jobsite or facility.

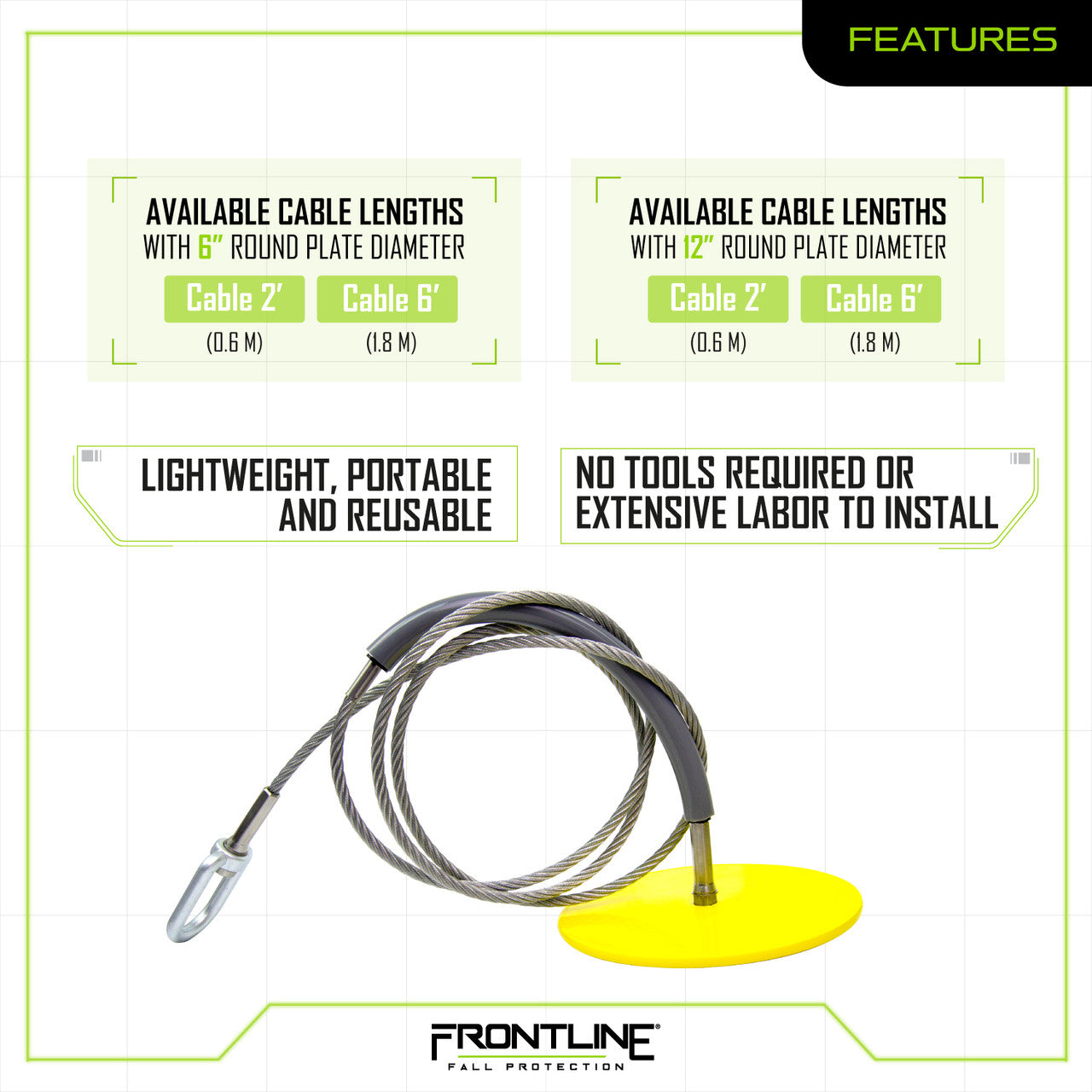

Options: 6" Round Plate with 2' Cable

6" Round Plate with 2' Cable 6" Round Plate with 6' Cable 12" Round Plate with 2' Cable 12" Round Plate with 6' Cable

Features

Lightweight, portable and reusable
No tools required, sets up in just seconds
Non-penetrating anchor, keeps the structure intact

Specs and Standards

User Maximum Capacity: 310lbs
Static Tensile Strength: 5,000-lbf/22kN

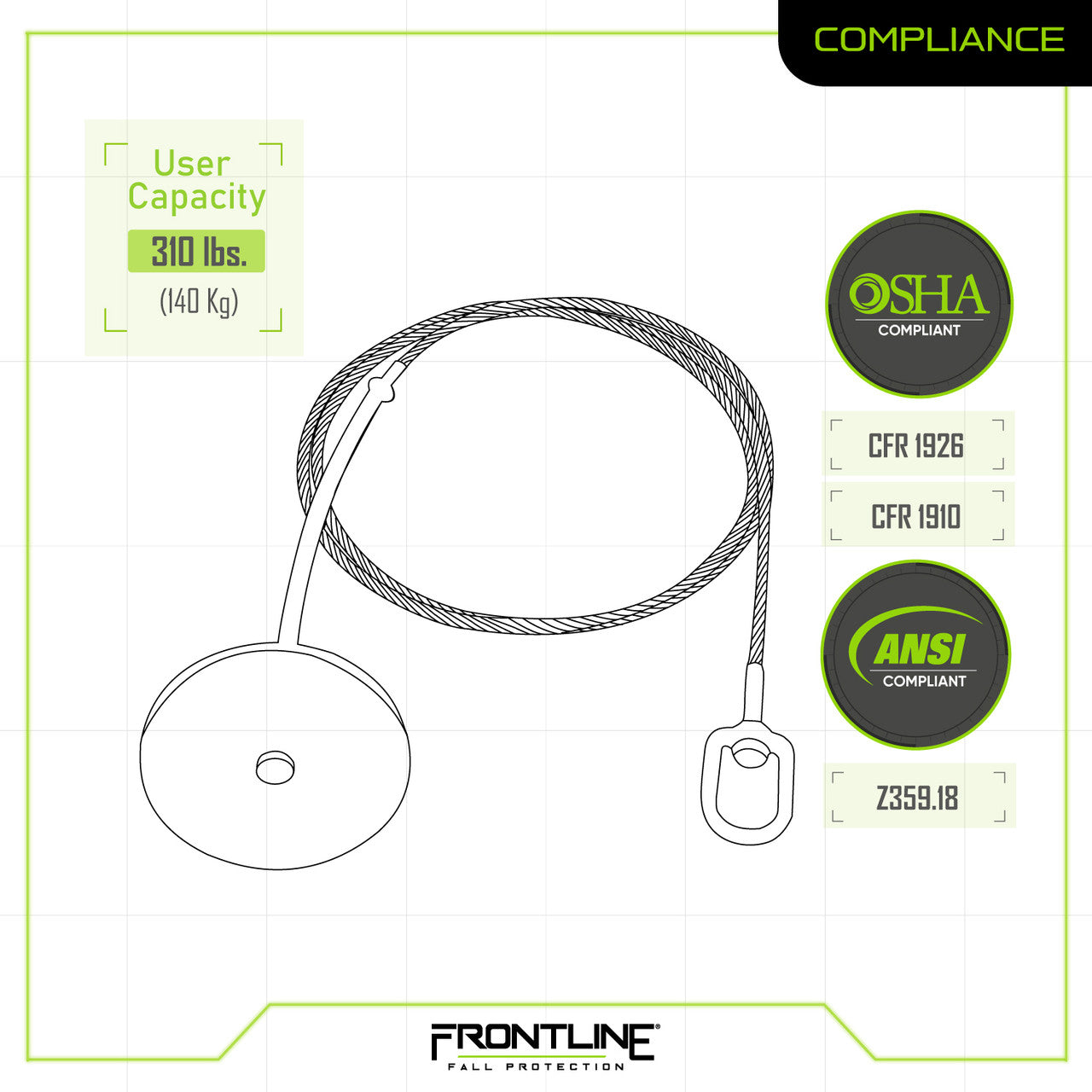

Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503 standards

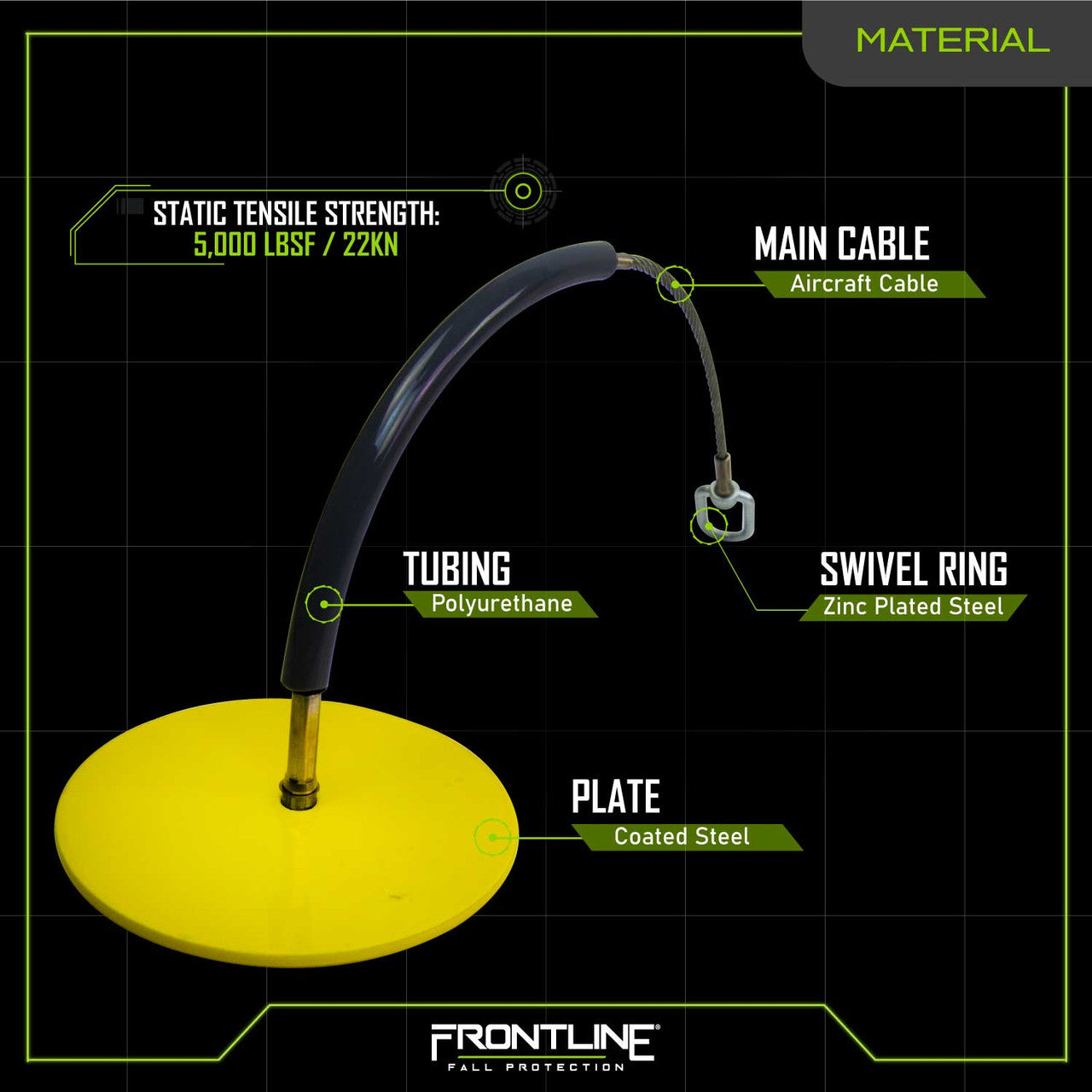

Components:

Aircraft Cable
Coated Steel Plate
Polyurethane Tubing
Zinc Plated Steel Swivel Ring
Stainless Steel End Termination
