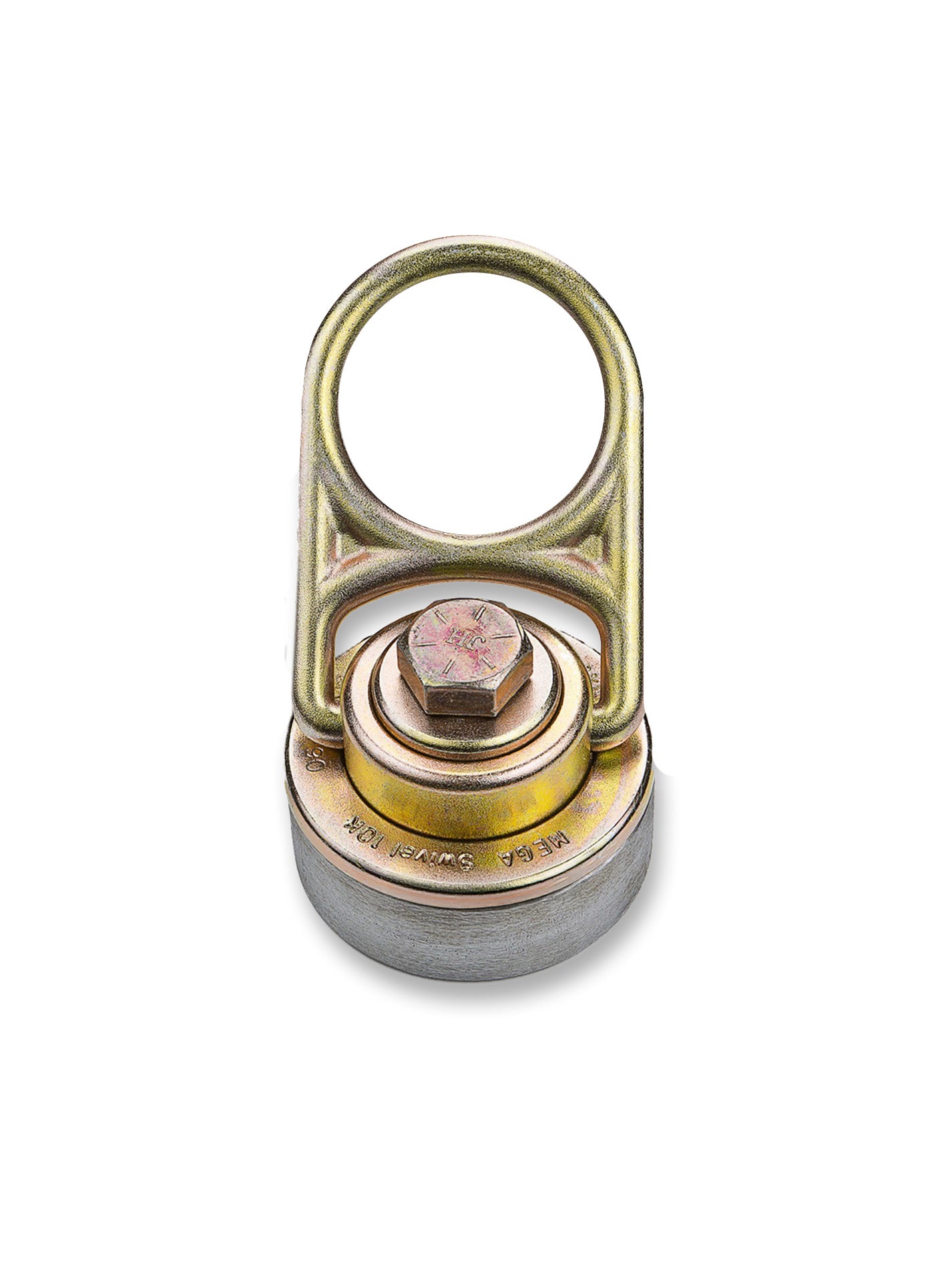

Frontline STMP10K-WO Weld-on Puck for MEGA Swivel 10K

Frontline STMP10K-WO Weld-on Puck for MEGA Swivel 10K

Name: Frontline STMP10K-WO Weld-on Puck for MEGA Swivel 10K
Brand: Frontline Fall Protection
SKU: STMP10K-WO
Price: 73.99 USD
Availability: InStock

SKU:STMP10K-WO

$73.99

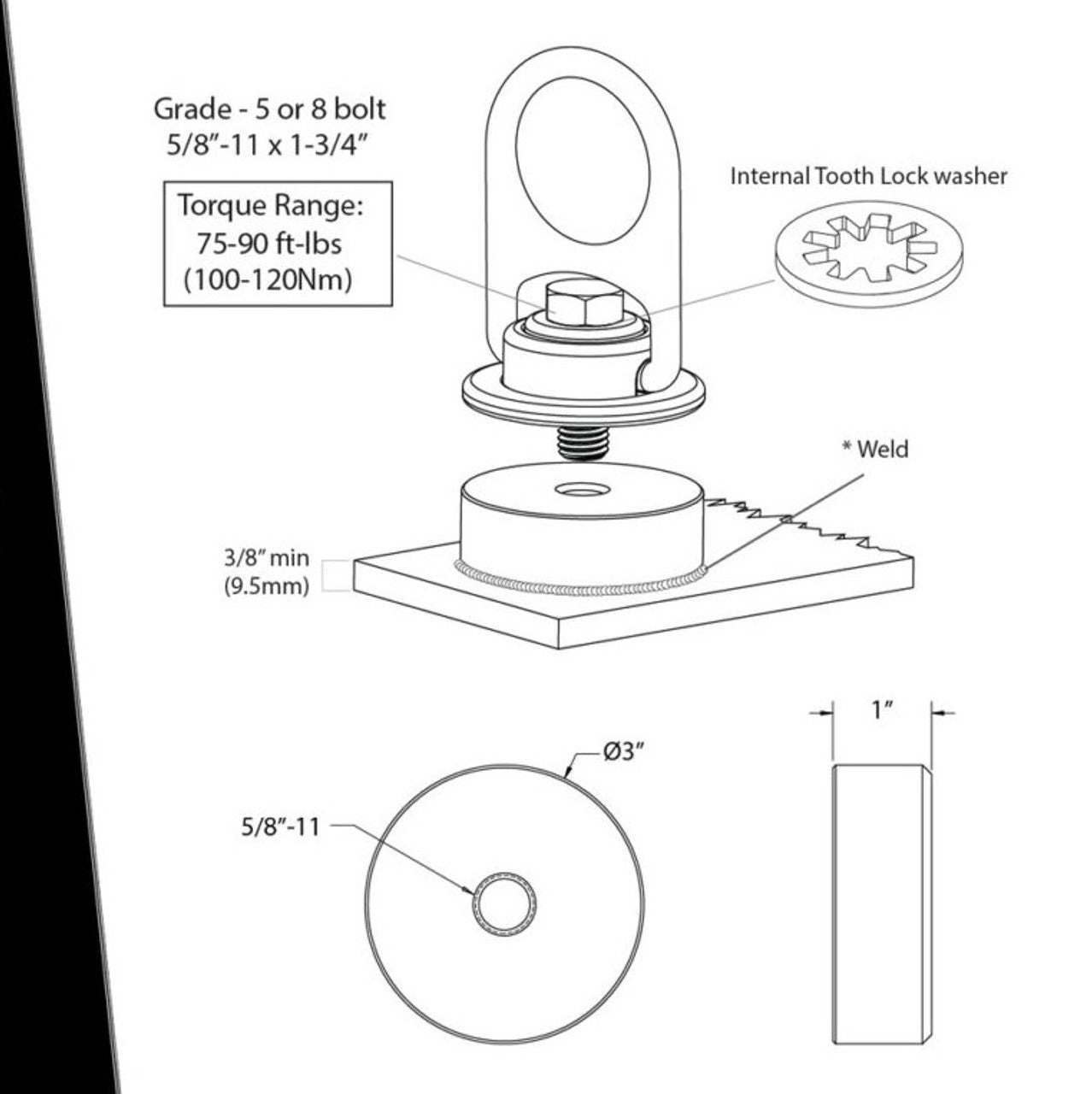

The Weld Puck Kit is a weld on mount for Frontline’s 10K Swivel Anchors. Available in stainless steel and mild carbon steel. A Grade 8 5/8″-11 bolt and internal lock washer are included in the kit.

Welding procedure must be approved by an engineer or other qualified person to be compatible with any and all structural and operational characteristics of the selected installation location.

Features

Anchor Rotates 360° and pivots 180° side-to-side
Permanent and Temporary installations supported for Steel
Anchor is rated up to 10,000 lbs Tensile Strength
3" x 1" Puck with 5/8" threaded hole
Includes 5/8" x 4" Plated Grade 8 Bolt and Nut

Specs and Standards

Tensile Strength 5,000 lbs Min.
ANSI User Capacity 130 to 310 lbs Max.
OSHA User Capacity 130 to 425 lbs Max.

Materials:

Connector D-Ring Zinc Plated Alloy Steel; 5,000 lbs Min
Weld-on Puck Unplated Mild Steel
Fasteners Zinc Plated Steel, Grade 8
